Dave Dieziger, Project Leader

• What Are Demand Charges?
• Communications With Your Local Electric Company
• To Simplify the Electricity Bill…
• Reducing Peak Demand
• High–Demand, Low-Consumption Loads
• Portable Electric Heaters
• Renewable Energy Sources
• Conclusions
• About the Author

This Tech Tip explains demand charges, how they are calculated, why we need to monitor them, and what we can do to lower them. Demand–related charges usually represent 30 to 70 percent of most commercial customers' electric bills. Electrical demand in some parts of the Nation stretched the capabilities of electrical generating and transmission systems during the summer of 1999, causing brownouts and blackouts.

The Department of Energy studied the events of the summer of 1999 and concluded that the problem will probably get worse before it gets better. The Federal Government, the Nation's largest energy user, must do its part to help. The Federal Energy Management Program's special issue on Power Outages (July 2000) has a letter from the Secretary of Energy and a Plan of Action instructing all government agencies to develop individual load reduction plans. This provides guidance and useful suggestions for reducing electrical demand and developing load reduction plans. The letter can be found at the web site: http://www.eren.doe.gov/femp.

What Are Demand Charges?

Demand is a measure of the rate at which energy is consumed. The demand an electric company must supply varies with the time of day, day of the week, and the time of year. Peak demand seldom occurs for more than a few hours or fractions of hours each month or year, but electric companies must maintain sufficient generating and transmission capacity to supply the peak demand. Demand charges represent the high costs that electric companies pay for generating and transmission capacity that sits idle most of the time. Demand charges are based on the amount of energy consumed in a specified period of time known as a demand interval. Demand intervals are usually 15 or 30 minutes.

To calculate a customer's demand, the electric company takes the demand interval with the highest energy consumption in kilowatt hours (kWh) and divides by the length of the demand interval in hours. Mathematically, this is expressed as kilowatt hours per hour. The hours cancel, leaving kilowatts, the units of power or demand. The Missoula Technology and Development Center's (MTDC) electric bill shows the high cost of energy consumed during the peak demand interval (figure 1). The total of all charges on MTDC's monthly electric bill based on kilowatt hours is 3.3 cents per kilowatt hour. All costs based on kilowatts total $7.37 per kilowatt. The demand interval is 15 minutes.

Suppose you use a 100–watt light bulb during MTDC's 15–minute peak demand interval. The demand charge will be:

($7.37/kW)(100 W)(kW/1000 W) = $0.74

The energy charge for using a 100–watt light bulb during any 15–minute period of the month is:

($0.033/kWh)(100 W)(kW/1000W)(15 min) (1 hour/60 min) = $0.00083

Figure 1—The MTDC offices were built in the late
1800's or early 1900's. The main building has
about 10,265 square feet of floor space.

It costs just as much to operate a 100–watt light bulb during the 15–minute peak demand interval as it does to operate the same 100–watt light bulb for 223 hours any other time during the month. The 223 hours equals 1 month of use at 10 hours per day and 22 days per month.

Calculating the cost per kilowatt hour during the peak demand interval further illustrates the high cost of demand charges. The cost of operating a 100–watt light during the 15–minute peak demand interval is $0.74.

$/kWh = $0.74/(100 W)(kW/1000 W)(15 min) (1 hr/60 min) = $29.60/kWh

Compare a cost of $29.60 per kilowatt hour to MTDC's rate schedule, just 3.3 cents per kilowatt hour. The Center is in the Northwest, which has some of the lowest electric rates in the country.

When you try to save money, you should focus most of your efforts on the most expensive items. The same approach should be used when trying to lower utility bills. The first step is to analyze your utility bills and understand exactly what you are paying for. Unfortunately, electric bills are often complicated and confusing. Demand and consumption charges sometimes vary with the time of day, day of the week, and the seasons. Some utilities have "ratchet" charges where the highest demand or consumption that occurs in one year will determine demand or energy charges for the next year. Even so, it is usually possible to summarize your bill into a demand charge (dollars per kilowatt) and an energy charge (dollars per kilowatt hour). The best place to start is the local electric company.

Communications With Your Local Electric Company

It is the author's experience that the utility bills for most Forest Service facilities are sent directly to the National Finance Center where they are paid. Your local electric company is the best place to get copies of previous bills that will help you understand your rate structure. Electric companies often have representatives who work with commercial customers. They can help you understand what you are paying for, develop an individual facility plan for emergency load reduction, and develop strategies for shaving peak demand. Utilities can also help fund energy conservation projects. For example, the Bonneville Power Administration (BPA) works with other Federal agencies in the Pacific Northwest to save energy and lower peak demand, reducing monthly electric bills. The BPA can provide technical assistance and funding to help projects happen. The BPA cannot make a profit and is reimbursed only for actual costs. Reimbursement is usually by monthly payments through the local electric company. In most cases the payments are less than the savings the improvements generate. For more information about the BPA’s program, contact Marla McCombie at: mlmccombie@bpa.gov.

If the utility is unable to supply the demand, they may be forced into a brownout (where the utility reduces the voltage), or the utility may use rolling blackouts (cutting all power to some customers for a period of time). As the Nation’s largest electric power consumers, U.S. Government facilities must have individual facility plans for electric load reduction that can be put into action at the electric company’s request. This plan lists loads that can be deferred for short periods, such as copy machines, hall lighting, air conditioning compressors, and similar devices.

If you were billed just for consumption, you would have no monetary incentive to reduce your peak demand. Because you are charged for demand, it is extremely helpful to know the monthly peak demands for a typical year, your demand profile for the day your peak demand occurred each month, and if possible, the daily peak demands for the entire year. The daily demand profile is a plot of your electrical demand for each hour of the day. This information is helpful in determining when, how long, how much, and how many times each month you will have to employ a strategy to reduce peak usage. With the advances in remote meter reading, your electric company may be able to provide this information for you or to set up a system that will allow you access to this information over the Internet. If not, you will have to install a device on the electric company's meter and coordinate the installation with them. Daily and monthly profiles with a sharp peak offer more opportunities for shaving peak usage (figure 2). Demand plots that are more of a rectangle with little or no peak offer few opportunities for shaving peak usage (figure 3) because demand must be reduced longer for the same savings. This makes some peak–usage–shaving strategies (such as supplying some of the facility’s loads with a standby generator) impractical.

Figure 2—A demand profile with a sharp peak.
Demand just has to be reduced during the early
afternoon to achieve demand savings.

Figure 3—A demand profile without a sharp peak.
Demand must be reduced over the entire
workday to achieve demand savings.

Reducing Peak Demand

Install More Efficient Equipment—Upgrading an older lighting system can reduce peak demand and energy consumption. In addition, modern lighting (figure 4) can improve productivity and reduce heat produced by the lights. Lighting retrofits should be done before, or when air conditioning units are downsized, because a modern lighting system will reduce cooling requirements. Articles on lighting and refrigeration can be found on MTDC's home page, available on the Forest Service and Bureau of Land Management's internal computer network at: http://fsweb.mtdc.wo.fs.fed.us.

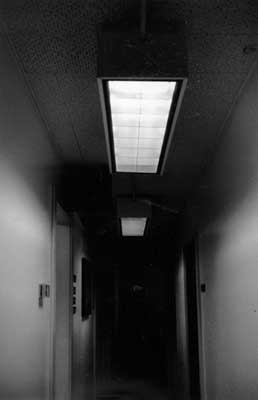

Figure 4—Light fixtures with energy–efficient T8
fluorescent lamps and electronic ballasts save
energy and reduce peak demand.

Downsize Equipment—Air–conditioning systems are probably the most common example of oversized equipment causing high demand charges. An oversized system may not consume much more energy than one closely sized to the load, but it will demand more electricity when it operates. An appropriately–sized system will operate longer, but it will save money by using less electricity at any given time.

Reschedule Loads—When possible, perform energyintensive operations when your facility's demand is low. If your facility uses a well or electric pump for irrigation, irrigate at night or early in the morning instead of during the day (figure 5). A timer that runs the sprinklers at night (figure 6) will reduce demand charges and evaporation losses. Reducing evaporation losses saves water and the energy used to pump it. If your facility has an electric hot water heater, a timer can be installed to prevent the heating elements from coming on during the day. Most water heaters have enough storage capacity to provide sufficient hot water for rest rooms and other miscellaneous uses during a normal workday. If more hot water is needed, increase the water temperature and install a water heater blanket. Increasing the water temperature and heating at night will increase energy consumption a small amount, but energy consumed at night is comparatively inexpensive. Preventing an electric water heater from coming on during peak demand periods will eliminate the water heater's demand charge.

Figure 5—Sprinklers supplied by a well or pump using an electric
motor increase electrical demand charges when they are used
during the day.

Figure 6—A timer for controlling irrigation sprinklers.
If water is supplied by a well or electric pump,
irrigating early in the morning or at night instead
of during the middle of the day will lower peak
electrical demand, reducing the electric bill.

Thermal Storage—An example of thermal storage is making ice at night when energy is cheaper. During the day when demand is high, the air-conditioning compressor could be turned off and ice could provide the cooling. If you do not need to reduce your demand for more than an hour or so, it may be possible to use the thermal storage of the building itself. Thermostats can be set toward the bottom of the comfort zone instead of the top (at 72 °F instead of 78 °F, for example). The lower temperature allows the air–conditioning compressor to be turned off or its output to be reduced for short periods without raising the temperature enough to bother a building's occupants. According to the American Society of Heating, Refrigeration, and Air–Conditioning Engineers, most people will not notice 1–hour periods when a building is hotter than normal. Thermal storage increases energy consumption, but the additional energy consumed is inexpensive compared to energy that is not consumed during peak demand.

Duty Cycling—When demand is high it may be possible to limit the operating time of equipment that consumes a lot of energy or to install a device that prevents two or three pieces of equipment from operating at the same time. For example, MTDC's six air-conditioning compressors (figure 7) could be placed on a system that allows only three or four units to operate at any one time. Energy consumption and occupant comfort will not be affected unless there is an extremely high cooling load. Preventing all of these units from operating at any one time will significantly reduce the demand charge. Only the compressor and its cooling fan will be interrupted. The building's air handlers will continue to circulate air and ensure a healthy environment. If this modification causes the building to become too hot during the afternoon, the thermostats could be set at a lower temperature. This will keep the building's temperature from exceeding the comfort zone during short periods of high cooling load. As a part of an emergency load–reduction plan, the air-conditioning units could be cycled manually every one–half hour with switches located at each unit.

Figure 7—Three of MTDC's six air–conditioning compressors. Installing
a controller that would prevent all the compressors from operating at
the same time would lower MTDC's peak electrical demand.

Dispatchable Load Shedding—Some electric companies will install equipment that allows them to interrupt nonessential loads at your facility for a specified amount of time in exchange for lower rates. The power company pays for the equipment. The consumer works with the electric company to determine which loads can be interrupted and for how long.

Alternate Power Sources—You may be able to use alternate power sources. If your facility has a standby or emergency generator, the generator (figure 8) may be able to supply a portion of your facility's load when demand is peaking. Other examples are using an engine to power an irrigation pump, air conditioning compressor, or electric arc welder when demand is peaking. When available, natural gas is the most desirable fuel. It costs less per British thermal unit than gasoline or diesel fuel and produces fewer pollutants. Because of the high costs of operating an internal combustion engine, it is not practical to supply a portion of your facility's load with a generator unless demand needs to be reduced just a few times each month.

Figure 8—A generator that could be used to shave
peak electrical demand.

High–Demand, Low–Consumption Loads

Infrequently used high–demand loads are often ignored. They should not be. For example, assume MTDC has a 10kW electric resistance space heater that is used 4 hours per month. Also assume MTDC's demand is otherwise constant and using this heater causes the monthly peak to be 10 kW higher. Using MTDC's low electric rates, the demand charge is: (10 kW)($7.36/kW) = $73.60 per month. The energy charge is: (10kW)(4 hr)($0.033/kWh) = $1.32 per month. Even though the heater consumes a small amount of electricity, the cost of operating this load for 6 months is substantial.

Converting to another heat source or rescheduling operations in this facility to another time so the load does not contribute to peak demand will save $73.60 per month. Another exercise that further illustrates how expensive high–demand, low–consumption loads can be is to calculate the average cost per kilowatt hour:

($73.60 + $1.32)/(10 kW)(4 hr) = $1.87/kWh

Compare a cost of $1.87 per kilowatt hour to the average energy charge of 3.3 cents per kilowatt hour from MTDC's rate schedule.

Portable Electric Heaters

Portable electric heaters are a fire hazard and are very expensive for the amount of heat they generate. For example, the monthly demand charge for a single 1,500–watt electric heater at MTDC is: (1,500 W)(1 kW/1,000 W)($7.37/kW) = $11.06/month. This figure is based on some of the nation's lowest electric rates and does not include any energy consumption. It would be safer and less expensive to ban portable electric heaters, raise the temperature of the building a few degrees, and make everyone more comfortable.

Renewable Energy Sources

Photovoltaic cells (figure 9) produce electricity during the day when peak demand usually occurs. Because photovoltaic power will be available during peak demand periods, economic analysis of their benefits should not be based on the average cost of electricity, but on the cost during peak demand periods. Otherwise, the savings will be underestimated and the payback period will be overestimated.

Figure 9—Photovoltaic cells on the roof of a Forest
Service building. Photovoltaic cells produce power
during the daytime when the peak demand for
electricity usually occurs.

Conclusions

Lowering your electric bill involves more than just saving energy. You must understand the role that demand charges play in your electricity bill, and do your best to reduce them.

About the Author

Dave Dieziger came to MTDC from the Northern Region Fleet Management staff in 1999. He has a bachelor's degree in mechanical engineering from the University of Idaho and is a licensed Professional Engineer. Other experience includes American Society of Mechanical Engineers certification as a boiler inspector, energy conservation work for the Navy, enlisted service in the Navy, and work as a city fireman.
